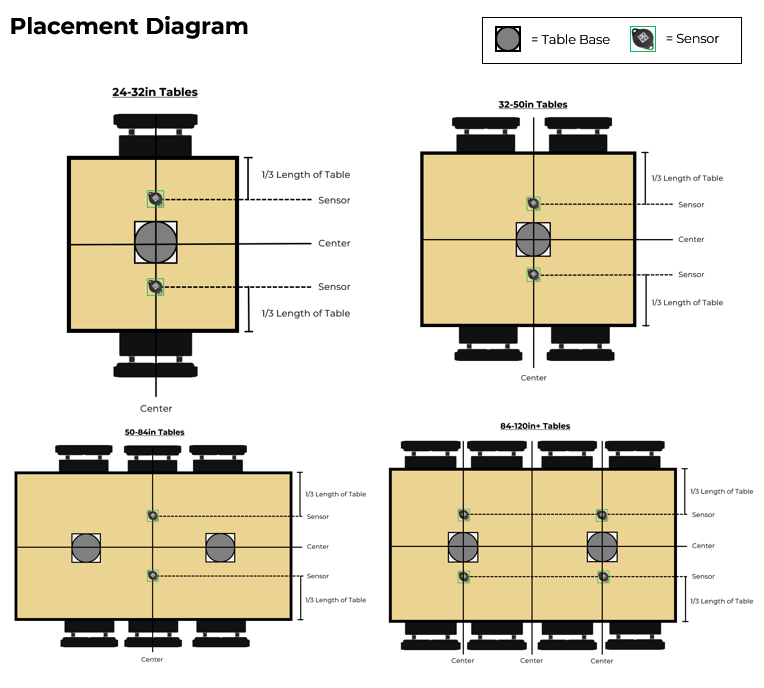

DigiSite Sensor Location Cheat Sheet

24-32in Tables:

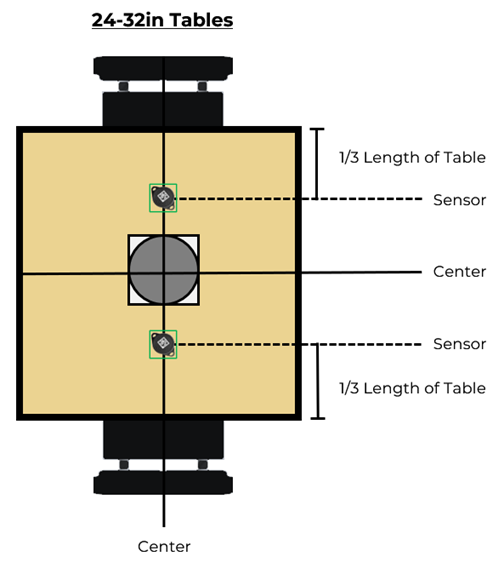

The image below is a top-down schematic of a table, with dimensions ranging from 24 to 32 inches. It highlights the placement of two DigiSite sensors:

• The center of the table is clearly marked.

• Each sensor is positioned at one-third the length of the table from the center (one above and one below).

• Labels indicate the "Center", "1/3 Length of Table", and "Sensor" positions.

32-50in Tables:

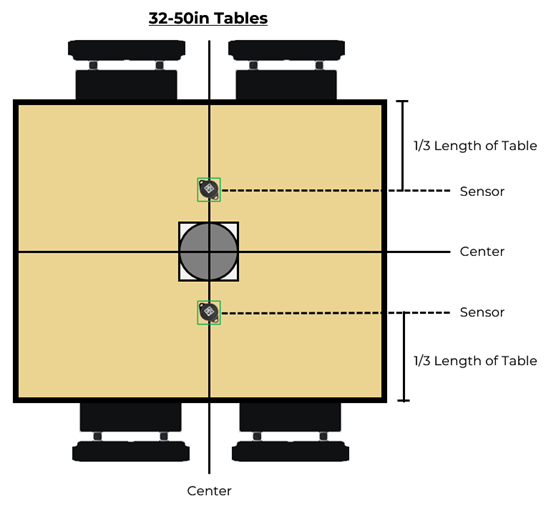

The image below is a top-down schematic of a table, with dimensions ranging from 32 to 50 inches. It highlights the placement of two DigiSite sensors:

• The center of the table is clearly marked.

• Each sensor is positioned at one-third the length of the table from the center (one above and one below).

• Labels indicate the "Center", "1/3 Length of Table", and "Sensor" positions.

50-84in Tables:

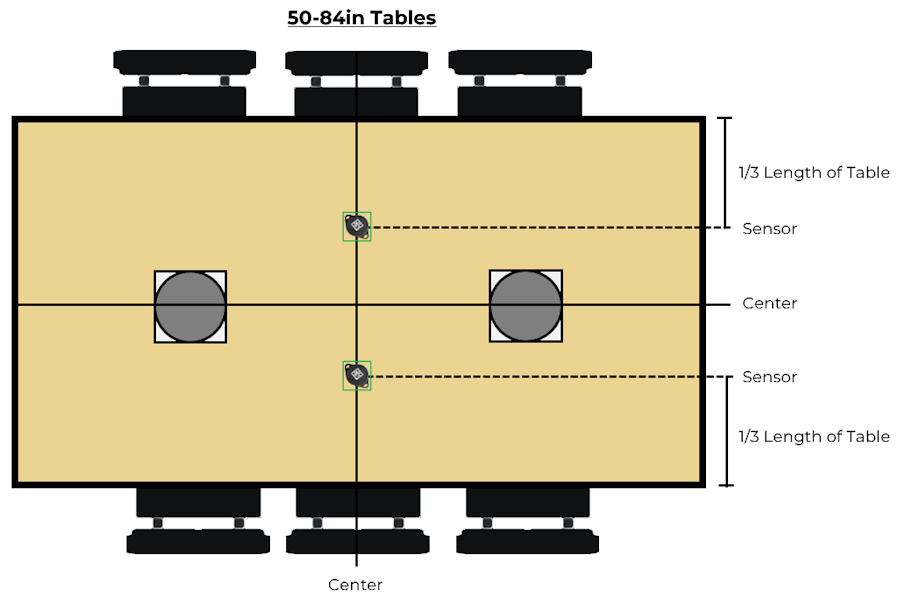

The image below is a top-down schematic of a table, with dimensions ranging from 50 to 84 inches. It highlights the placement of two DigiSite sensors:

• The center of the table is clearly marked.

• Each sensor is positioned at one-third the length of the table from the center (one above and one below).

• Labels indicate the "Center", "1/3 Length of Table", and "Sensor" positions.

84-120in+ Tables

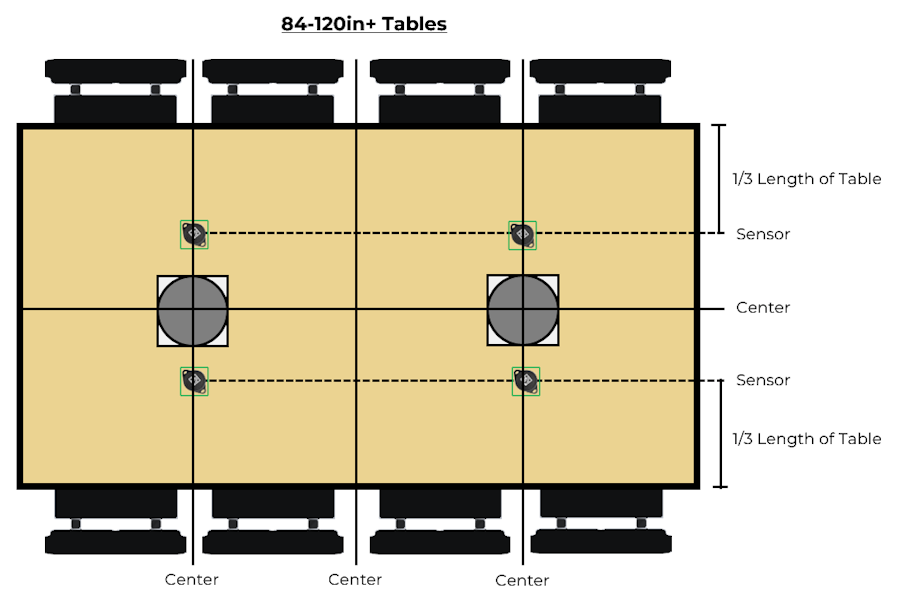

The image below is a top-down schematic of a table, with dimensions ranging from 84 to 120+ inches. It highlights the placement of four DigiSite sensors:

• The center of the table is clearly marked.

• Each sensor is positioned at one-third the length of the table from the center (one above and one below).

• Labels indicate the "Center", "1/3 Length of Table", and "Sensor" positions.
